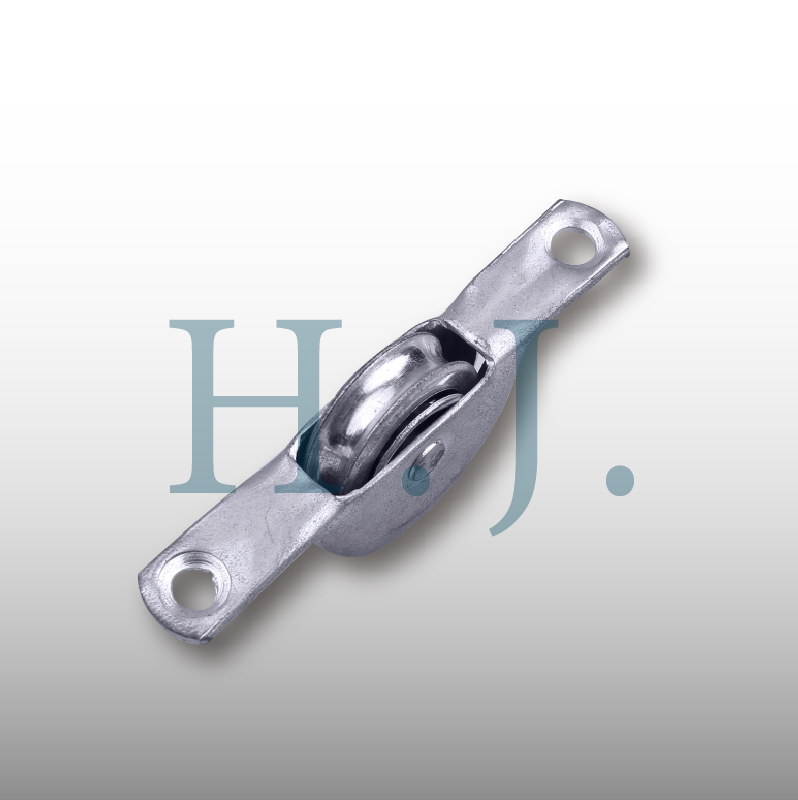

Window pulley bearing

Window Pulley Bearing – Custom Bearing Solutions for Sliding Window Systems

A window pulley bearing is a small but important mechanical component used in sliding windows, aluminum window systems, architectural hardware, rollers, tracks, and pulley assemblies. Its main purpose is to reduce friction and allow the window sash or panel to move smoothly along a rail or guide.

Although window pulley bearings are compact, their performance can directly affect how easily a window opens and closes. Poor bearing quality, incorrect roller dimensions, worn pulley surfaces, corrosion, or misalignment can create noise, resistance, uneven movement, and premature failure.

HSIAN JI BEARING CO., LTD. is a Taiwan bearing manufacturer with bearing products used in applications including windows, sliding doors, pulleys, door and window pulleys, building materials, hardware, drawers, furniture pulleys, and other mechanical systems. HSIAN JI's published bearing categories include ball bearings, slide bearings, plastic bearings, stamped bearings, thrust bearings, special bearings, and non-standard bearings.

For customers requiring a window pulley bearing, HSIAN JI can evaluate standard, custom, special, and non-standard bearing requirements according to drawings, physical samples, bearing dimensions, pulley dimensions, shaft size, track geometry, sash weight, materials, corrosion requirements, noise requirements, and production quantities.

What Is a Window Pulley Bearing?

A window pulley bearing is a bearing installed inside or integrated with a roller or pulley used in a sliding-window mechanism.

A typical assembly may include:

• Bearing

• Pulley wheel

• Roller

• Shaft

• Rivet

• Bracket

• Housing

• Retaining components

The pulley contacts the track while the bearing allows the wheel to rotate with reduced friction.

How Does a Window Pulley Bearing Work?

As the window moves along its track, the pulley rotates around a shaft.

The bearing helps reduce friction between the rotating pulley and stationary shaft.

This can provide:

• Smoother movement

• Lower operating resistance

• Reduced wear

• Lower noise

• Improved durability

The exact performance depends on the complete pulley, track, bearing, and window assembly.

Window Bearings from HSIAN JI

HSIAN JI's published product catalogue repeatedly lists windows and door and window pulleys among the applications for its bearing models.

This means window and architectural-hardware applications are directly aligned with HSIAN JI's existing bearing portfolio.

Ball Bearings for Window Pulleys

Ball bearings are commonly used in pulley assemblies because rolling contact helps reduce rotational friction.

HSIAN JI's Ball Bearings page specifically lists windows, pulleys, door and window pulleys, building materials, and hardware among application areas.

Potential advantages include:

• Smooth rotation

• Low friction

• Reliable repeated movement

• Compact dimensions

• Suitable load support

Custom sizes can be evaluated according to the pulley and track design.

Slide Bearings for Window Systems

HSIAN JI also maintains a dedicated Slide Bearings category. Its published description explains that slide bearings support and guide linearly moving mechanical components, and the product applications include windows, sliding doors, pulleys, and door/window pulleys.

Slide-bearing concepts may therefore be relevant where the window system requires guided linear movement rather than only a rotating pulley.

Plastic Bearings for Window Pulleys

Plastic bearings can provide useful characteristics for window hardware.

Potential benefits include:

• Corrosion resistance

• Low weight

• Reduced noise

• Smooth movement

• Design flexibility

HSIAN JI's Plastic Bearings range also lists windows, pulleys, and door/window pulleys among applications.

Material selection should consider sash load, temperature, moisture, wear, and expected cycle life.

Stamped Bearings for Window Hardware

Stamped bearings can provide compact bearing structures for architectural-hardware applications.

HSIAN JI's Stamped Bearings range includes windows, pulleys, building materials, and door/window pulleys among its published applications.

Stamped configurations may be useful where the bearing must integrate with a compact metal bracket or housing.

Window Pulley Bearings for Sliding Windows

Sliding windows are one of the most natural applications for pulley bearings.

Important design factors include:

• Window sash weight

• Pulley diameter

• Number of pulleys

• Track profile

• Shaft diameter

• Bearing dimensions

• Installation space

The correct bearing should be selected based on the complete sliding system.

Window Pulley Bearings for Aluminum Windows

Aluminum sliding windows often use compact roller assemblies installed inside narrow frame profiles.

This creates several design challenges:

• Limited installation space

• Small roller diameter

• Narrow bearing width

• Precise fit

• Moisture exposure

Custom bearings may be useful when standard dimensions do not fit the aluminum frame profile.

Window Pulley Bearings for Sliding Glass Windows

Sliding glass windows can be heavier than lightweight screen or aluminum-panel systems.

Bearing selection should consider:

• Glass weight

• Sash width

• Number of rollers

• Track geometry

• Load per pulley

• Usage frequency

For heavier systems, load distribution should be evaluated carefully.

Window Pulley Bearings for Residential Windows

Residential window systems typically require:

• Smooth opening

• Low noise

• Long service life

• Corrosion resistance

• Compact design

A well-matched pulley bearing can improve perceived window quality.

Window Pulley Bearings for Commercial Buildings

Commercial architectural systems may use larger or more frequently operated windows.

Requirements can include:

• Higher load

• Increased cycle life

• Better corrosion resistance

• Consistent dimensions

• Repeat OEM production

Customers should provide complete system requirements.

Window Pulley Bearings for Architectural Hardware

Architectural hardware includes:

• Sliding windows

• Sliding doors

• Track systems

• Rollers

• Guides

• Pulleys

• Building-material components

HSIAN JI's current product catalogue explicitly includes building materials and hardware among its application areas.

This makes custom window pulley bearings highly relevant to architectural-hardware manufacturers.

Custom Window Pulley Bearings

Standard bearings may not fit proprietary window profiles.

Custom requirements can involve:

• Inner diameter

• Outer diameter

• Width

• Pulley diameter

• Pulley width

• Shaft diameter

• Groove shape

• Flange geometry

• Mounting features

Customers should provide technical drawings whenever possible.

Custom Window Pulley Wheel Profiles

The wheel profile must match the track.

Possible profiles include:

• Flat

• Grooved

• Concave

• V-shaped

• Application-specific geometries

An incorrect profile can cause poor movement, uneven load, or derailment.

Track drawings or physical samples are especially useful.

Small Window Pulley Bearings

Window systems often use small bearings because installation space is limited.

Potential custom requirements include:

• Small OD

• Narrow width

• Small bore

• Integrated pulley geometry

HSIAN JI already offers multiple compact bearing models for window and pulley applications.

Low Noise Window Pulley Bearings

Noise is an important requirement in residential and commercial windows.

Noise can originate from:

• Bearing wear

• Track irregularity

• Roller material

• Misalignment

• Insufficient lubrication

• Dirt

Plastic pulley materials or carefully matched bearing systems may help reduce operating noise.

Corrosion Resistant Window Pulley Bearings

Windows are often exposed to:

• Humidity

• Condensation

• Rain

• Outdoor air

• Coastal salt

Corrosion-resistant materials may therefore improve durability.

Potential approaches can include:

• Engineering plastics

• Stainless steel components

• Sealed bearings

• Other corrosion-resistant materials

The exact environment should be defined.

Sealed Window Pulley Bearings

Seals can help reduce contamination from:

• Dust

• Dirt

• Moisture

This can be especially useful in outdoor-facing window systems.

However, seals may also add friction, so the correct configuration depends on the application.

Stainless Steel Window Pulley Bearings

Stainless steel may be considered where corrosion resistance is important.

However, not all stainless steel grades offer the same resistance to moisture or salt.

Customers should specify:

• Environment

• Material grade

• Load

• Bearing dimensions

Plastic Window Pulley Bearings

Plastic materials can be useful in humid environments because they do not rust like conventional steel.

They can also help reduce noise and weight.

However, plastic bearing suitability depends on:

• Load

• Wear

• Temperature

• Track material

• Cycle life

Window Pulley Bearing Load Capacity

The bearing must support the sash weight transmitted through the pulley.

A basic calculation should consider:

• Total sash weight

• Number of load-carrying pulleys

• Load distribution

• Shock

• Misalignment

• Safety factor

Actual load may not divide perfectly evenly across all rollers.

Heavy Duty Window Pulley Bearings

Large or heavy window panels can require stronger pulley-bearing assemblies.

Important information includes:

• Sash weight

• Number of rollers

• Load per roller

• Track material

• Frame stiffness

• Usage frequency

The bearing, shaft, bracket, and track should be evaluated together.

Window Pulley Bearing Shaft Design

The shaft supports the bearing inside the pulley.

Important considerations include:

• Shaft diameter

• Material

• Fit

• Alignment

• Load

An undersized or poorly aligned shaft can reduce bearing life.

Window Pulley Bearing Track Design

Track geometry affects pulley performance.

Potential issues include:

• Track width

• Groove profile

• Surface roughness

• Alignment

• Debris

The pulley profile should match the track.

Lubrication for Window Pulley Bearings

Lubrication can reduce:

• Friction

• Wear

• Noise

However, excessive lubricant can attract dust or contaminate the track.

Lubrication requirements depend on bearing type and material.

Replacement Window Pulley Bearings

Older window systems may use rollers or bearings that are no longer available.

A replacement project can begin with:

• Original pulley

• Original bearing

• Physical sample

• Frame profile

• Track dimensions

• Sash weight

• Required quantity

A custom or non-standard replacement can then be evaluated.

Window Pulley Bearings from Engineering Drawings

Customers can provide:

• 2D drawings

• 3D CAD models

• Window assembly drawings

• Pulley dimensions

• Bearing dimensions

• Shaft dimensions

• Track profile

• Material specifications

• Tolerances

Assembly drawings are especially valuable.

Window Pulley Bearings from Physical Samples

A physical sample can provide information about:

• Pulley diameter

• Bearing size

• Shaft dimensions

• Groove shape

• Mounting method

Customers should also provide information about the complete window system.

Prototype Window Pulley Bearing Development

Prototype development can help verify:

• Bearing fit

• Pulley fit

• Track compatibility

• Smooth movement

• Noise

• Installation

Testing should preferably be performed in the actual window.

Window Pulley Cycle Testing

Windows may be opened and closed thousands of times during their service life.

Potential cycle testing can evaluate:

• Movement

• Noise

• Wear

• Bearing condition

• Pulley condition

• Track wear

Customers should define the required cycle-life standard.

OEM Window Pulley Bearings

Window manufacturers may require proprietary pulley-bearing components for repeat production.

OEM customers should provide:

• Engineering drawings

• Material requirements

• Annual demand

• Packaging

• Inspection requirements

Approved specifications can then support repeat manufacturing.

Low Volume Window Pulley Bearings

Replacement and specialized architectural projects may require smaller quantities.

Small-batch projects can be evaluated according to:

• Design

• Material

• Tooling

• Quantity

Quality Control for Window Pulley Bearings

Quality control can include:

• Bearing dimensional inspection

• Pulley diameter inspection

• Shaft-fit checking

• Rotation testing

• Noise evaluation

• Assembly inspection

Small dimensional variations can affect track movement, so consistency is important.

How to Choose a Window Pulley Bearing Supplier

When choosing a supplier, consider:

• Window-hardware application experience

• Small bearing capability

• Custom sizing

• Ability to work from samples

• Special/non-standard bearing development

• Corrosion-resistant material options

• OEM production

• Quality control

The supplier should understand the complete pulley-and-track system.

HSIAN JI – Window Pulley Bearing Solutions from Taiwan

HSIAN JI BEARING CO., LTD. has a strong published connection to window pulley applications. Its current product catalogue repeatedly lists windows, pulleys, door and window pulleys, sliding doors, building materials, and hardware among bearing applications.

For window pulley bearing inquiries, customers can provide:

• 2D engineering drawing

• 3D CAD model

• Physical sample

• Bearing ID

• Bearing OD

• Bearing width

• Pulley diameter

• Pulley width

• Shaft diameter

• Track profile

• Window sash weight

• Number of rollers

• Material requirements

• Indoor or outdoor application

• Required quantity

• Estimated annual demand

HSIAN JI can evaluate ball-bearing, slide-bearing, plastic-bearing, stamped-bearing, special, and non-standard solutions for window pulley and architectural-hardware applications.

---

Window Pulley Bearing FAQ

What is a window pulley bearing?

A window pulley bearing is a bearing installed inside or integrated with a pulley or roller used to support smooth movement in a sliding-window system.

Does HSIAN JI supply bearings for window pulleys?

Yes. HSIAN JI's current product catalogue repeatedly lists windows, pulleys, and door/window pulleys among bearing applications.

What type of bearing is used in window pulleys?

Depending on the design, possible solutions include:

• Ball bearings

• Slide bearings

• Plastic bearings

• Stamped bearings

• Special bearings

Are ball bearings suitable for window pulleys?

Yes.

HSIAN JI's Ball Bearings range specifically lists windows and door/window pulleys among its applications.

Are slide bearings suitable for window systems?

Potentially.

HSIAN JI's Slide Bearings page describes linear-motion applications and lists windows and door/window pulleys among its application areas.

Can plastic bearings be used in window pulleys?

Potentially.

Plastic bearings can provide corrosion resistance, low weight, and reduced noise. HSIAN JI's Plastic Bearings range includes windows and pulley applications.

Can stamped bearings be used in window hardware?

Potentially.

HSIAN JI's Stamped Bearings products also list windows and door/window pulleys among their applications.

Can window pulley bearing dimensions be customized?

Yes.

Custom requirements can include:

• Inner diameter

• Outer diameter

• Width

• Pulley diameter

• Shaft size

• Mounting dimensions

Can pulley diameter be customized?

Yes, depending on manufacturing feasibility and track geometry.

Can pulley width be customized?

Yes.

Customers should provide the frame and track dimensions.

Can the pulley groove be customized?

Potentially.

The pulley profile should match the track, so track drawings or physical samples are recommended.

Can you manufacture window pulley bearings from drawings?

Yes.

Engineering drawings provide a strong basis for custom evaluation.

Can you work from a physical sample?

Yes.

A physical sample can help define dimensions, pulley profile, shaft size, and mounting structure.

Can you reproduce discontinued window rollers?

Potentially.

Provide the original roller or bearing, track information, sash weight, and required quantity.

Can window pulley bearings be used in aluminum windows?

Yes.

Compact pulley bearings are particularly relevant to aluminum sliding-window profiles.

Can window pulley bearings be used in glass windows?

Potentially.

Heavier glass systems require careful load evaluation.

Can window pulley bearings support heavy windows?

Yes, depending on bearing and pulley design.

Customers should provide total sash weight and the number of load-supporting rollers.

How do I calculate the load per window roller?

A simple starting point is to divide the sash weight by the number of supporting rollers.

However, actual load distribution may not be perfectly equal, so a safety margin should be considered.

Can window pulley bearings be low noise?

Yes.

Noise depends on bearing condition, pulley material, track surface, lubrication, alignment, and load.

What causes a window pulley to become noisy?

Common causes include:

• Worn bearing

• Damaged pulley

• Dirt

• Misalignment

• Rough track

• Lack of lubrication

Why is my sliding window difficult to move?

Possible causes include:

• Bearing wear

• Pulley damage

• Dirty track

• Misalignment

• Excessive load

• Corrosion

Can window pulley bearings be sealed?

Yes, depending on bearing design.

Seals can help reduce dust and moisture ingress.

Are window pulley bearings waterproof?

Not automatically.

Water resistance depends on seals, material, housing, and complete assembly design.

Can window pulley bearings be corrosion resistant?

Yes.

Plastic, stainless steel, sealed, or other corrosion-resistant approaches can be considered.

Can stainless steel bearings be used in window pulleys?

Potentially.

Stainless steel can be useful in humid or outdoor environments, depending on grade and load requirements.

Can plastic pulley wheels be used?

Yes.

Plastic wheels can help reduce noise and corrosion in certain applications.

Can metal pulley wheels be used?

Yes.

Metal wheels may be selected where strength or wear resistance is important.

Which pulley material is best?

There is no single best material.

The choice depends on:

• Load

• Track material

• Noise

• Wear

• Environment

• Cost

Can window pulleys be used outdoors?

Yes, but outdoor applications should consider humidity, rain, corrosion, dust, and temperature variation.

Can they be used in coastal environments?

Potentially.

Salt exposure can increase corrosion risk, so materials should be selected carefully.

Can window pulley bearings be used in architectural hardware?

Yes.

HSIAN JI's current product range explicitly includes building materials and hardware as application areas.

Can window pulley bearings be customized for OEM products?

Yes.

OEM projects can be evaluated from drawings, samples, annual demand, and quality requirements.

Can window pulley bearings be produced in small quantities?

Small-quantity projects can be submitted for evaluation.

Can they be mass produced?

Yes, approved custom products can potentially move into repeat OEM production.

Can I order a prototype first?

Yes.

Prototype development can help verify fit, track compatibility, movement, and noise before regular production.

How should window pulley bearings be tested?

Potential testing can include:

• Static load

• Rolling movement

• Cycle testing

• Noise

• Wear

• Corrosion

• Track compatibility

How many cycles should a window pulley last?

There is no universal cycle value.

The required service life should be defined by the window or hardware manufacturer according to the intended product.

Does track alignment affect bearing life?

Yes.

Poor alignment can increase friction, noise, uneven load, and wear.

Does pulley diameter affect movement?

Yes.

Pulley diameter can affect rolling behavior, load distribution, installation space, and track compatibility.

Does bearing width matter?

Yes.

Width affects installation space and bearing structure.

Compact window frames often require narrow components.

What information should I provide for a quotation?

For a window pulley bearing inquiry, provide:

• 2D engineering drawing

• 3D CAD model

• Physical sample

• Bearing inner diameter

• Bearing outer diameter

• Bearing width

• Pulley diameter

• Pulley width

• Shaft diameter

• Track profile

• Window sash weight

• Number of rollers

• Material requirement

• Indoor or outdoor use

• Noise requirement

• Corrosion requirement

• Required quantity

• Estimated annual demand

Complete window and pulley information helps improve technical evaluation.

What is the difference between a window pulley and a window bearing?

The pulley is the wheel that contacts the track.

The bearing is usually installed inside the pulley and allows the wheel to rotate more smoothly.

What is the difference between window pulley bearings and door pulley bearings?

The operating principle is similar.

Door systems usually handle different loads, roller sizes, and frame dimensions, while window systems often require smaller and more compact pulley assemblies.

What is the difference between a window pulley bearing and a slide bearing?

A window pulley bearing generally rotates inside a wheel or pulley.

A slide bearing supports or guides linear movement through sliding contact.

The appropriate solution depends on the window mechanism.

Why choose HSIAN JI for window pulley bearing projects?

HSIAN JI's current product catalogue directly supports this application. Numerous bearing models are listed for windows, pulleys, door/window pulleys, sliding doors, building materials, and hardware.

If you require a window pulley bearing for aluminum windows, sliding glass windows, residential window systems, commercial architectural hardware, replacement rollers, or OEM window products, send HSIAN JI your drawings, physical samples, pulley dimensions, track profile, sash load, material requirements, and production quantities for evaluation.
