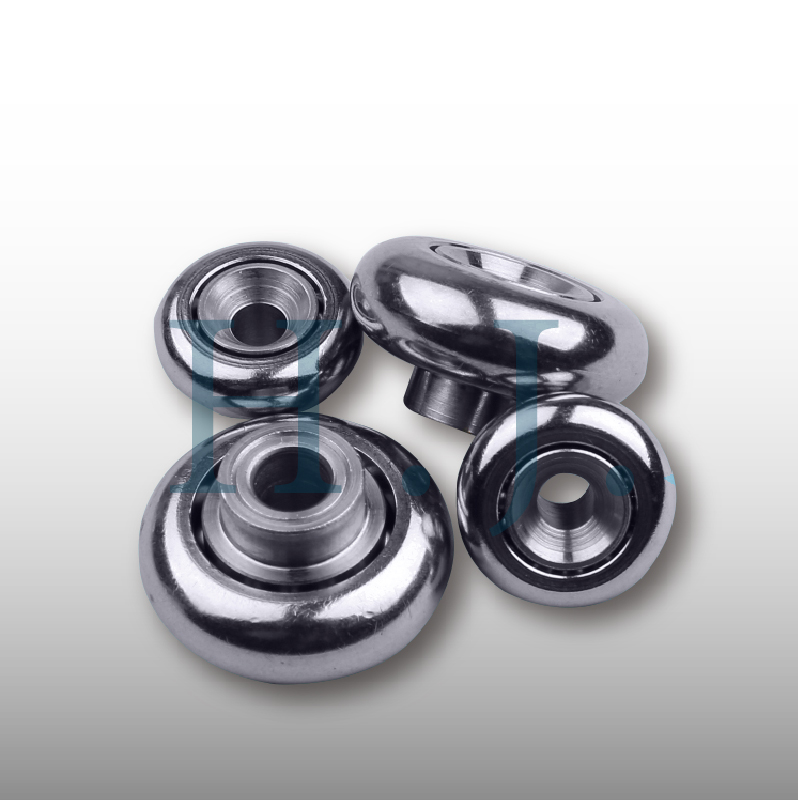

Unusual size bearings
Unusual Size Bearings – Custom Bearing Solutions for Non-Standard Dimensions
Finding the correct bearing is usually straightforward when a machine or product uses a common industry-standard size. However, many mechanical systems require dimensions that are not readily available from standard bearing catalogues. Special shaft diameters, restricted housings, unusual widths, compact assemblies, older machinery, and customized OEM products can all create the need for unusual size bearings.
Unusual size bearings are bearings with dimensions or configurations that differ from commonly available standard products. Instead of redesigning an entire machine around a catalogue bearing, manufacturers and engineers can evaluate a custom or non-standard bearing that better matches the existing mechanical requirements.
HSIAN JI BEARING CO., LTD. is a Taiwan bearing manufacturer established in 1995. We manufacture and develop ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
For customers searching for unusual size bearings, HSIAN JI can evaluate requirements based on engineering drawings, physical samples, dimensions, materials, applications, operating conditions, and production quantities.
What Are Unusual Size Bearings?
Unusual size bearings are bearing products with dimensions that differ from common catalogue sizes.
These dimensional differences can involve:
-
Inner diameter
-
Outer diameter
-
Width
-
Thickness
-
Flange diameter
-
Flange thickness
-
Mounting dimensions
-
Overall geometry
In some cases, only one dimension is unusual. In other applications, several dimensions or structural features may differ from conventional products.
The appropriate manufacturing approach depends on the complete bearing design and application.
Why Are Unusual Bearing Sizes Needed?
There are many reasons why a mechanical system may require an unusual bearing size.
For example, a machine may have been designed around a proprietary component. An older piece of equipment may use a bearing size that is no longer commonly available. A new OEM product may have limited internal space, or a fixed shaft and housing may prevent the use of a standard bearing.
Common situations include:
-
Non-standard shafts
-
Special housings
-
Limited installation space
-
Compact mechanical products
-
Older machinery
-
Imported equipment
-
Discontinued bearing models
-
Customized OEM products
-
Special sliding systems
-
Dedicated mechanical assemblies
In these situations, unusual size bearings can provide an alternative to redesigning surrounding components.
Custom Inner Diameter Bearings
The inner diameter, or bore, determines how the bearing fits onto a shaft.
A standard bearing may have the correct outer diameter but an unsuitable bore.
For example, an existing machine may use a shaft that cannot easily be replaced or modified. If no standard bearing matches the required shaft diameter and other dimensional requirements, a custom bore size can be evaluated.
Customers should provide:
-
Shaft diameter
-
Required bore diameter
-
Outside diameter
-
Width
-
Load
-
Speed
-
Application information
Providing complete dimensions is important because changing the bore may affect other aspects of the bearing design.
Custom Outer Diameter Bearings
The outside diameter determines how the bearing fits into a housing, wheel, roller, bracket, or other mechanical structure.
Some applications have a fixed housing that cannot be changed.
A bearing may therefore require an unusual outside diameter while maintaining other important dimensions.
Customers should provide detailed housing and assembly information so the complete fit can be evaluated.
Unusual Width Bearings
Bearing width is another dimension that can create compatibility problems.
A standard bearing may have the correct bore and outside diameter but still be too wide or too narrow for the available installation space.
An unusual-width bearing can potentially help when:
-
Assembly space is limited
-
Existing equipment has fixed dimensions
-
Adjacent components cannot be moved
-
An OEM product requires a compact design
Width modifications should always be evaluated together with the overall bearing structure.
Unusual Size Ball Bearings
Ball bearings are widely used for rotational movement, but standard ball bearing sizes do not fit every application.
An unusual size ball bearing may require a special:
-
Bore diameter
-
Outside diameter
-
Width
-
External configuration
-
Mounting feature
Customers should provide shaft dimensions, housing dimensions, load, speed, environment, and required quantities.
HSIAN JI manufactures ball bearing products and can evaluate customer-specific dimensional requirements.
Unusual Size Plastic Bearings
Plastic bearings can provide useful characteristics for applications where lightweight construction, corrosion resistance, moisture resistance, reduced noise, or design flexibility are important.
Plastic bearing projects may also require unusual dimensions.
Customers should provide:
-
Inner diameter
-
Outer diameter
-
Width
-
Material requirements
-
Load
-
Speed
-
Temperature
-
Moisture
-
Chemical exposure
-
Operating environment
Material selection and dimensions should be evaluated together.
Unusual Size Thrust Bearings
Thrust bearings are primarily used to support axial loads.
A standard thrust bearing may not fit an application because of shaft diameter, available outside diameter, or thickness restrictions.
Custom requirements may involve:
-
Special inner diameter
-
Special outer diameter
-
Custom thickness
-
Washer dimensions
-
Overall configuration
Customers should provide axial load, speed, dimensions, materials, and installation information for evaluation.
Unusual Size Slide Bearings
Slide bearings are used to support and guide sliding or linear movement.
These products often interact directly with a particular rail, guide, bracket, frame, or housing.
An unusual size slide bearing may therefore be required when an existing sliding system does not match common bearing dimensions.
Assembly drawings can be particularly useful because they show the relationship between the bearing and the complete sliding mechanism.
Unusual Size Stamped Bearings
Stamped bearings can be used in various mechanical, furniture, hardware, equipment, and OEM applications.
Customized dimensional requirements may include:
-
Outside dimensions
-
Bore dimensions
-
Stamped housing geometry
-
Mounting features
-
Overall thickness
-
Application-specific structures
Customers can provide technical drawings or physical samples for manufacturing evaluation.
Unusual Size Bearings Based on Engineering Drawings
Engineering drawings provide one of the best starting points for custom-size bearing development.
Customers can provide:
-
2D technical drawings
-
3D CAD models
-
Assembly drawings
-
Inner diameter
-
Outer diameter
-
Width
-
Materials
-
Critical tolerances
-
Mounting information
A drawing should clearly identify which dimensions are critical to the application.
Assembly drawings are also useful because they allow the manufacturer to understand how the bearing interacts with the shaft, housing, rail, wheel, roller, or other components.
Manufacturing Unusual Size Bearings from Samples
Technical drawings are not always available, particularly for older machinery or discontinued components.
In these situations, a physical bearing sample can provide useful information about:
-
Dimensions
-
External geometry
-
Basic structure
-
Mounting features
Sample-based development can be relevant to:
-
Old machinery
-
Imported equipment
-
Discontinued components
-
Existing OEM products
-
Hard-to-find bearings
Customers should also provide known application information because a physical sample alone may not reveal all original specifications.
Unusual Size Bearings for OEM Products
OEM manufacturers often design products around unique mechanical dimensions.
The product designer may have limited space available for a bearing because of surrounding components.
Using an unusual size bearing can provide greater design flexibility.
OEM applications may involve:
-
Special shaft diameters
-
Compact housings
-
Restricted widths
-
Unique mounting arrangements
-
Dedicated product geometry
OEM customers should provide drawings, application information, initial quantities, estimated annual demand, and quality requirements.
Unusual Size Bearings for Existing Machinery
Replacing bearings in older machinery can be challenging.
The machine may use dimensions that are no longer common, or the original manufacturer may no longer supply replacement parts.
Replacing or modifying the shaft and housing can be expensive.
In these situations, manufacturing an unusual size replacement bearing may be worth evaluating.
Customers should provide:
-
Original bearing
-
Available drawings
-
Shaft dimensions
-
Housing dimensions
-
Load
-
Speed
-
Application
-
Required quantity
Unusual Size Bearings for Limited Installation Space
Modern products are often designed to be smaller and more compact.
However, limited space can make standard bearing selection difficult.
A product may require:
-
Smaller outside diameter
-
Different width
-
Special bore
-
Unique external geometry
Rather than changing the complete product design, engineers can evaluate whether a custom-size bearing is technically feasible.
Prototype Unusual Size Bearings
Prototype manufacturing can be useful when developing a new bearing size.
A prototype allows customers to verify:
-
Inner diameter
-
Outer diameter
-
Width
-
Fit
-
Installation
-
Movement
-
Assembly compatibility
The bearing can be tested within the actual machine or finished product.
If dimensional adjustments are required, they can be evaluated before regular production.
From Prototype to Production
After prototype approval, the project can move toward production preparation.
Depending on the bearing design, this process may involve:
-
Drawing confirmation
-
Material confirmation
-
Prototype approval
-
Production preparation
-
Trial production
-
Dimensional inspection
-
Customer verification
-
Regular production
Clear technical documentation is particularly important for unusual size products because their dimensions may be unique to one customer.
Quality Control for Unusual Size Bearings
Dimensional consistency is especially important when a bearing is manufactured for a specific shaft or housing.
Quality control can include:
-
Raw material control
-
Process inspection
-
Dimensional inspection
-
Finished-product inspection
-
Product testing
-
Production monitoring
-
Packaging inspection
Approved drawings and samples can provide references for repeat production.
Low Volume Unusual Size Bearings
Some unusual-size projects do not require high production volumes.
Lower quantities may be needed for:
-
Replacement parts
-
Specialized machinery
-
Prototypes
-
Product development
-
Initial OEM production
Manufacturing feasibility depends on dimensions, bearing structure, material, tooling requirements, production processes, and quantity.
Customers should provide both initial requirements and potential future demand.
Mass Production of Unusual Size Bearings
Unusual dimensions do not necessarily mean low-volume production.
Many OEM products use non-standard bearing dimensions as dedicated production components.
After the bearing design and manufacturing process are approved, regular production can be evaluated according to:
-
Order quantity
-
Annual demand
-
Production frequency
-
Forecast requirements
-
Quality requirements
-
Packaging specifications
This allows an unusual-size bearing to become a repeatable OEM component.
Unusual Size Bearings vs. Standard Bearings
Standard bearings are manufactured according to commonly used dimensions and are usually easier to source.
Unusual size bearings are appropriate when standard dimensions cannot satisfy the mechanical application.
Before developing a custom product, customers should determine whether an existing standard bearing can meet the requirements.
If not, special or non-standard manufacturing can be evaluated.
Unusual Size Bearings vs. Non-Standard Bearings
The terms are closely related.
An unusual size bearing emphasizes dimensional differences such as bore, outside diameter, or width.
A non-standard bearing is a broader category that may differ in both dimensions and structure.
Therefore, many unusual size bearings can also be classified as non-standard bearings.
Unusual Size Bearings vs. Special Size Bearings
"Unusual size bearings" and "special size bearings" have very similar meanings.
Both terms are commonly used when buyers cannot find the required dimensions from standard bearing catalogues.
For SEO purposes, unusual size bearings can target buyers searching specifically for uncommon, difficult-to-find, or non-catalogue bearing dimensions.
Applications for Unusual Size Bearings
Depending on bearing type and design, unusual size bearings can be evaluated for:
-
Industrial machinery
-
Conveyors
-
Automation equipment
-
Packaging machinery
-
Medical equipment
-
Office equipment
-
Furniture
-
Drawers
-
Doors and windows
-
Sliding systems
-
Hardware
-
Transportation products
-
Bicycles
-
Scooters
-
Fitness equipment
-
Sporting goods
-
Specialized OEM products
The appropriate bearing depends on the dimensions and operating conditions of each application.
HSIAN JI – Unusual Size Bearings from Taiwan
HSIAN JI BEARING CO., LTD. has been involved in bearing development and manufacturing in Taiwan since 1995.
Our product range includes ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
For unusual size bearings, customers can provide:
-
2D engineering drawings
-
3D CAD models
-
Assembly drawings
-
Physical samples
-
Inner diameter
-
Outer diameter
-
Width
-
Material specifications
-
Required tolerances
-
Load
-
Speed
-
Application
-
Initial quantity
-
Estimated annual demand
If you cannot find the bearing dimensions you need in a standard catalogue, send HSIAN JI your drawing, sample, dimensions, and application requirements for evaluation.
Unusual Size Bearings FAQ
What are unusual size bearings?
Unusual size bearings are bearings with dimensions that differ from commonly available standard catalogue sizes.
They may have a special inner diameter, outside diameter, width, thickness, flange dimension, or overall geometry.
Are unusual size bearings the same as non-standard bearings?
The terms overlap, but they emphasize slightly different characteristics.
Unusual size bearings specifically emphasize uncommon dimensions.
Non-standard bearings are a broader category that can include unusual dimensions, structures, materials, mounting features, and configurations.
Are unusual size bearings the same as special size bearings?
The terms are often used in similar ways.
Both describe bearings with dimensions that are difficult or impossible to find among standard catalogue products.
Why would I need an unusual size bearing?
You may need an unusual size bearing when:
-
Your shaft has a non-standard diameter
-
Your housing has fixed dimensions
-
Installation space is restricted
-
Standard bearings are too wide
-
An existing bearing is obsolete
-
Your OEM product requires dedicated dimensions
The reason should be evaluated together with the complete mechanical application.
Does HSIAN JI manufacture unusual size bearings?
HSIAN JI manufactures standard, special, and non-standard bearing categories and supports development according to different customer requirements.
Projects involving unusual dimensions can be submitted with drawings, samples, specifications, and quantities for evaluation.
Can the bearing inner diameter be customized?
Special inner-diameter requirements can be evaluated according to bearing structure and manufacturing feasibility.
Customers should provide shaft diameter, outside diameter, width, load, speed, and application information.
Can you make bearings with an unusual outside diameter?
Custom outside diameters can be evaluated when the bearing needs to fit a specific housing, wheel, roller, or other mechanical component.
Complete housing dimensions should be provided.
Can bearing width be customized?
Special-width bearings can be evaluated according to product structure and application requirements.
Customers should provide the required width together with the bore, outside diameter, and assembly information.
Can several dimensions be customized at the same time?
Potentially, yes.
A bearing may require a custom bore, outside diameter, width, flange, or other dimensions simultaneously.
The complete product must be evaluated for manufacturing feasibility.
Can you manufacture unusual size ball bearings?
HSIAN JI manufactures ball bearing products.
Requirements involving unusual bore diameters, outside diameters, widths, or external configurations can be submitted for evaluation.
Can you manufacture unusual size plastic bearings?
HSIAN JI manufactures plastic bearings.
Custom-size plastic bearing projects should include dimensions, material requirements, load, speed, temperature, moisture, chemicals, and application information.
Can you manufacture unusual size thrust bearings?
HSIAN JI manufactures thrust bearings.
Special dimensions can be evaluated according to inner diameter, outer diameter, thickness, axial load, speed, material, and installation requirements.
Can you manufacture unusual size slide bearings?
HSIAN JI manufactures slide bearing products.
Unusual-size requirements can be evaluated according to rails, guides, dimensions, mounting structures, movement, load, and the complete mechanical assembly.
Can you manufacture unusual size stamped bearings?
Stamped bearing requirements can be evaluated according to customer drawings, physical samples, dimensions, geometry, materials, and production quantities.
Can you manufacture an unusual size bearing from my drawing?
Yes, engineering drawings provide an effective basis for technical evaluation.
Customers should clearly identify:
-
Inner diameter
-
Outer diameter
-
Width
-
Critical tolerances
-
Materials
-
Mounting dimensions
An assembly drawing can provide additional information about the application.
Can you reproduce an unusual bearing from a physical sample?
A physical sample can provide useful dimensional and structural information when an original engineering drawing is unavailable.
Application and operating information should also be provided whenever possible.
Can you reproduce bearings for old machinery?
Older machinery may use unusual or obsolete bearing sizes.
Customers can provide the original bearing, available drawings, shaft dimensions, housing dimensions, and operating information for evaluation.
Can unusual size bearings replace discontinued bearings?
Potentially.
If the original bearing is discontinued and no standard replacement fits, a custom or non-standard replacement can be evaluated.
The original sample is particularly useful for this type of project.
Can you manufacture hard-to-find bearing sizes?
Hard-to-find bearing dimensions can be submitted for evaluation.
A physical sample, drawing, or complete dimensional specification should be provided.
Can unusual size bearings be used in OEM products?
Yes.
OEM manufacturers often require unique bearing dimensions because the bearing must fit within a dedicated product design.
Customers should provide drawings, application information, quantities, and estimated annual demand.
Can unusual size bearings be used in compact products?
Potentially.
Limited installation space is one reason customers require unusual bearing dimensions.
The complete shaft, housing, and surrounding assembly should be evaluated.
Can I order a prototype first?
Depending on the project, prototype manufacturing can help verify the bearing's dimensions, fit, installation, movement, and assembly compatibility.
Prototype testing is particularly useful when developing a new size.
Can dimensions be changed after prototype testing?
If prototype testing identifies fit or installation problems, dimensional changes can be evaluated before regular production.
The feasibility of modifications depends on bearing structure and manufacturing requirements.
Can unusual size bearings be produced in small quantities?
Low-volume requirements can be submitted for evaluation.
These may include replacement parts, specialized machinery, prototypes, and initial OEM production.
Manufacturing feasibility depends on the product and quantity.
Can unusual size bearings be mass produced?
Yes, unusual dimensions do not necessarily mean low-volume production.
After design and production approval, custom-size bearings can potentially become regular OEM production components.
How should I measure an unusual size bearing?
The three basic dimensions usually required are:
-
Inner diameter (ID)
-
Outer diameter (OD)
-
Width (W)
However, special bearings may require additional dimensions for flanges, housings, mounting structures, grooves, or other features.
For complex products, a technical drawing is strongly recommended.
What tolerances should I specify?
Critical dimensions should include appropriate tolerances on the engineering drawing.
Tolerance requirements should correspond to the actual fit and function of the application.
Unnecessarily tight tolerances can increase manufacturing complexity.
What information should I provide for a quotation?
For an unusual size bearings inquiry, provide as much of the following information as possible:
-
Bearing type
-
Inner diameter
-
Outer diameter
-
Width
-
2D engineering drawing
-
3D CAD model
-
Assembly drawing
-
Physical sample
-
Materials
-
Required tolerances
-
Load
-
Speed
-
Application
-
Operating environment
-
Initial quantity
-
Estimated annual demand
Complete information helps make technical and commercial evaluation more efficient.
What applications use unusual size bearings?
Unusual size bearings can be relevant to machinery, conveyors, automation systems, packaging equipment, medical equipment, office equipment, furniture, sliding systems, hardware, transportation products, bicycles, scooters, fitness equipment, and specialized OEM products.
The correct bearing depends on the mechanical and dimensional requirements of each application.
Why choose HSIAN JI for unusual size bearings?
HSIAN JI BEARING CO., LTD. has manufactured and developed bearing products in Taiwan since 1995.
Our product range includes ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
For unusual-size projects, customers can provide drawings, CAD models, physical samples, dimensions, materials, applications, and production requirements.
If the bearing size you require is not available from a standard catalogue, contact HSIAN JI with your technical specifications for evaluation.
