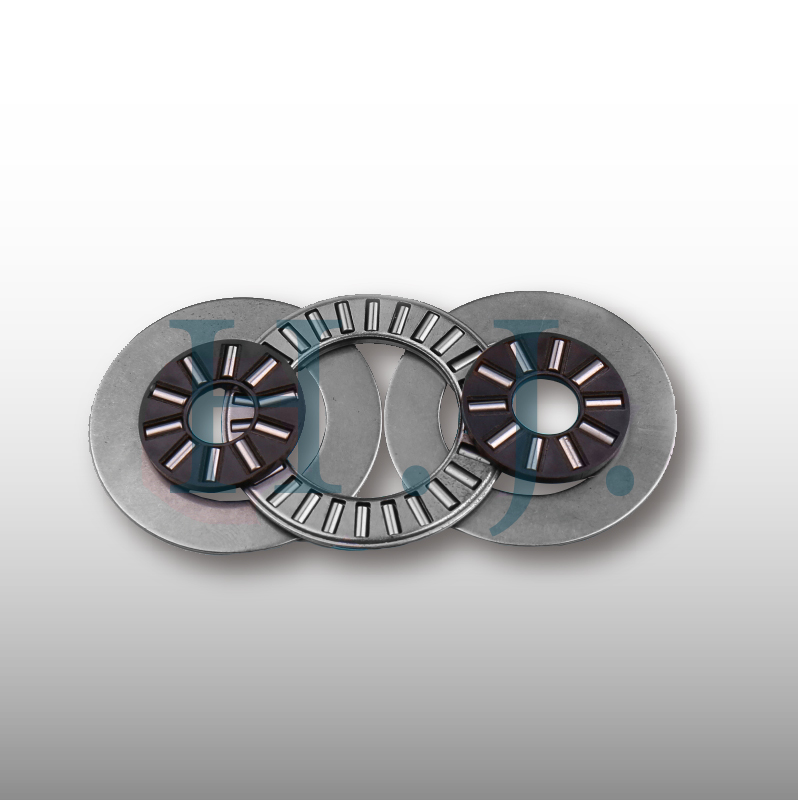

Custom thrust bearings
Custom Thrust Bearings – Custom Bearing Manufacturer in Taiwan
Thrust bearings play an important role in mechanical systems where axial forces must be supported while allowing controlled movement between components. Standard thrust bearings are available in many sizes and configurations, but specialized machinery and OEM products may require unique dimensions, structures, materials, or installation arrangements. In these situations, custom thrust bearings can provide a bearing solution developed around the specific application.
HSIAN JI BEARING CO., LTD. is a bearing manufacturer in Taiwan with experience in bearing development and manufacturing. Established in 1995, we manufacture a variety of bearing products, including thrust bearings, ball bearings, plastic bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
In addition to existing products, HSIAN JI can evaluate customized bearing development according to customer requirements and samples. For customers looking for custom thrust bearings, technical drawings, physical samples, dimensions, operating conditions, and estimated quantities can provide the basis for project evaluation.
What Are Custom Thrust Bearings?
Custom thrust bearings are bearing products developed specifically to support axial-load applications while meeting customer-specific dimensional, structural, installation, or operating requirements.
Unlike radial bearings, which primarily support forces perpendicular to a shaft, thrust bearings are mainly designed to accommodate forces acting along the axis of rotation or movement.
Customized requirements may involve:
-
Inner diameter
-
Outer diameter
-
Overall thickness
-
Bearing configuration
-
Washer dimensions
-
External structure
-
Mounting arrangement
-
Material requirements
-
Installation space
-
Application-specific features
The purpose of custom thrust bearings is to provide a bearing solution that fits the mechanical system when a standard catalogue product cannot meet the required specifications.
Understanding Axial Loads in Thrust Bearing Applications
Axial load is one of the most important considerations when evaluating a thrust bearing.
An axial force acts parallel to the shaft or rotational axis. Depending on the equipment, this force may be continuous, intermittent, or vary during operation.
Understanding the direction and operating conditions of the load helps provide useful information during custom bearing development.
Customers should consider factors such as:
-
Direction of axial force
-
Expected load conditions
-
Type of movement
-
Operating speed
-
Installation arrangement
-
Available space
-
Operating environment
-
Expected operating cycle
A bearing should be evaluated as part of the complete mechanical system rather than selected only according to dimensions.
Why Choose Custom Thrust Bearings?
Standard thrust bearings are usually the simplest solution when their specifications match the application.
However, mechanical designs are not always based on standard bearing dimensions.
An OEM product may have restricted installation space. Existing machinery may use a special thrust bearing that is difficult to source. A new product may require a unique bearing configuration to integrate with surrounding components.
Custom thrust bearings may be considered when:
-
Standard thrust bearings do not fit
-
Special inner or outer diameters are required
-
Overall thickness must be customized
-
Installation space is limited
-
A unique bearing configuration is required
-
An existing bearing has been discontinued
-
A special replacement bearing is required
-
An OEM product needs a dedicated bearing
-
A physical sample needs to be reproduced
Custom development allows the bearing to be evaluated according to the actual product requirements.
Custom Size Thrust Bearings
Dimensional requirements are a common reason for developing non-standard thrust bearings.
A standard thrust bearing may have the correct general configuration but an unsuitable inner diameter, outer diameter, or thickness.
Custom dimensional requirements may include:
-
Special bore diameter
-
Non-standard outside diameter
-
Custom overall thickness
-
Special washer dimensions
-
Application-specific external dimensions
Customers should provide accurate dimensional information together with shaft, housing, and installation details.
Because changing one dimension may influence the overall bearing configuration, custom thrust bearings should be evaluated as complete components.
Custom Thrust Bearings Based on Engineering Drawings
Technical drawings are one of the most effective ways to communicate custom bearing requirements.
A 2D engineering drawing can identify critical dimensions, geometry, and other specifications. A 3D CAD model or assembly drawing can provide additional information about surrounding components.
Customers should provide:
-
2D technical drawings
-
3D CAD models when available
-
Inner diameter
-
Outer diameter
-
Overall thickness
-
Shaft dimensions
-
Housing dimensions
-
Axial load information
-
Operating speed
-
Installation requirements
-
Operating environment
-
Estimated quantities
-
Special specifications
Complete technical information allows the manufacturer to better understand the project and evaluate manufacturing feasibility.
Custom Thrust Bearings from Physical Samples
Technical drawings may not always be available, particularly when replacing bearings from older machinery or specialized equipment.
An existing thrust bearing can provide a useful starting point for product evaluation.
HSIAN JI can evaluate bearing development according to customer requirements and physical samples.
Customers should provide the existing component together with any known dimensions, application information, operating conditions, and required quantities.
When original engineering specifications are unavailable, additional technical confirmation may be necessary before production.
Custom Thrust Ball Bearings
Thrust ball bearings use ball rolling elements and are designed primarily for axial-load applications.
When standard thrust ball bearing sizes or configurations cannot meet the mechanical requirements, a customized solution may be evaluated.
Customers should provide information about dimensions, axial load conditions, operating speed, installation arrangement, and environmental requirements.
The appropriate configuration depends on the complete application.
For specialized OEM products, custom thrust bearings can provide greater design flexibility when standard catalogue sizes cannot be used.
Custom Plastic Thrust Bearings
Plastic bearing components may be considered for applications where characteristics such as lightweight construction, corrosion resistance, low noise, or specific environmental requirements are important.
HSIAN JI manufactures plastic bearing products and can evaluate customized requirements according to the application.
For a custom plastic thrust bearing project, factors such as axial load, dimensions, movement, operating temperature, moisture, installation conditions, and environment should be considered.
Material suitability should always be evaluated according to the intended application.
Special and Non-Standard Thrust Bearings
Many custom thrust bearing projects also fall into the category of special or non-standard bearings.
A non-standard thrust bearing may differ from conventional catalogue products in dimensions, structure, or configuration.
A special thrust bearing may incorporate application-specific characteristics developed for a particular mechanical system.
Potential applications can include:
-
Industrial machinery
-
Conveyor equipment
-
Rotating mechanisms
-
Furniture hardware
-
Sliding systems
-
Office equipment
-
Medical equipment
-
Fitness equipment
-
Packaging machinery
-
Transportation products
-
Specialized OEM products
Each application should be evaluated individually according to its mechanical and operating requirements.
Custom Thrust Bearings for OEM Applications
OEM manufacturers frequently develop products with unique mechanical structures.
The thrust bearing may need to fit within limited space while interacting with shafts, housings, washers, or other components.
Using a custom bearing can provide additional flexibility when standard dimensions cannot meet these requirements.
For OEM projects, assembly drawings can be particularly valuable because they allow the manufacturer to understand how the bearing fits within the complete mechanical system.
Production quantity and repeat-order requirements should also be considered during development.
From Thrust Bearing Design to Production
Depending on the complexity of the project, development may include:
-
Customer requirement analysis
-
Application and axial-load evaluation
-
Drawing or sample review
-
Confirmation of critical dimensions
-
Design and manufacturing feasibility evaluation
-
Prototype or sample development
-
Dimensional inspection
-
Testing and verification
-
Trial production
-
Mass production
Prototype development can help confirm dimensions, installation compatibility, and functional requirements before volume production.
For completely new custom thrust bearings, testing under representative application conditions may also provide useful information before final approval.
Quality Control for Custom Thrust Bearings
Customized bearing products should be manufactured consistently according to approved specifications.
Quality management may include material inspection, manufacturing process control, dimensional measurement, product inspection, testing, final inspection, and production monitoring.
Approved drawings, samples, and technical specifications can provide the basis for production and quality control.
For repeat OEM orders, maintaining consistent critical dimensions and manufacturing requirements is particularly important.
Custom Thrust Bearing Manufacturer in Taiwan
Taiwan has an established manufacturing ecosystem supporting bearings, precision components, machinery, metalworking, plastics, hardware, and OEM production.
HSIAN JI BEARING CO., LTD. has been involved in bearing development and manufacturing since 1995.
Thrust bearings are one of our bearing product categories, together with ball bearings, plastic bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
If standard thrust bearings cannot satisfy your application, send HSIAN JI your drawings, samples, dimensions, axial-load information, application requirements, and estimated quantities.
We can evaluate your custom thrust bearings project and discuss an appropriate customized bearing solution.
Custom Thrust Bearings FAQ
1. What are custom thrust bearings?
Custom thrust bearings are thrust bearing products developed according to specific customer dimensions, configurations, installation requirements, or applications.
They are primarily intended for mechanical systems involving axial forces.
Custom development may be considered when a standard thrust bearing cannot satisfy the dimensional, structural, or application requirements of a product.
2. What type of load does a thrust bearing support?
Thrust bearings are primarily designed to support axial loads.
An axial load acts parallel to the shaft or axis of movement.
This differs from a primarily radial load, which acts perpendicular to the shaft.
The actual load conditions should be evaluated when selecting or developing a thrust bearing.
3. When do I need a custom thrust bearing?
A custom thrust bearing may be required when available standard products cannot adequately meet your application.
Common reasons include non-standard dimensions, limited installation space, unique mechanical configurations, special mounting requirements, discontinued components, and new OEM product development.
Customers should provide detailed application information for technical evaluation.
4. Can HSIAN JI manufacture custom thrust bearings?
HSIAN JI manufactures thrust bearing products and can evaluate customized requirements according to customer drawings, samples, dimensions, applications, and production quantities.
The feasibility of a particular design depends on its dimensions, structure, operating conditions, and other technical requirements.
5. Can thrust bearing dimensions be customized?
Special dimensional requirements can be evaluated.
Customization may involve:
-
Inner diameter
-
Outer diameter
-
Overall thickness
-
Washer dimensions
-
External dimensions
-
Mounting dimensions
Because dimensional changes can influence the overall bearing configuration, the complete product should be evaluated before manufacturing.
6. Can you manufacture a thrust bearing with a custom inner diameter?
Special inner diameter requirements can be evaluated when the bearing must fit a non-standard shaft or mechanical component.
Customers should provide accurate shaft dimensions as well as outer diameter, thickness, installation information, and application requirements.
A technical drawing is recommended whenever possible.
7. Can the outer diameter of a thrust bearing be customized?
Custom outer diameter requirements can also be evaluated.
This may be useful when the bearing must fit within a special housing or restricted installation space.
Customers should provide housing dimensions and information about surrounding components.
An assembly drawing can be particularly helpful.
8. Can the thickness of a thrust bearing be customized?
Depending on the bearing design and manufacturing feasibility, special thickness requirements can be evaluated.
This can be important for compact mechanical systems where axial installation space is limited.
However, thickness should not be considered independently from the complete bearing configuration and operating requirements.
9. Can you manufacture custom thrust bearings from my drawing?
Customer drawings can provide the basis for project evaluation.
The drawing should clearly identify critical dimensions, geometry, and other technical specifications.
Customers should also provide axial-load information, operating speed, installation conditions, environment, and estimated quantities.
10. Can you reproduce a thrust bearing from a physical sample?
HSIAN JI can evaluate bearing development according to customer requirements and samples.
This may be useful when an existing special or discontinued thrust bearing needs replacement but original engineering documentation is unavailable.
Providing application and operating information together with the sample can improve the technical evaluation.
11. What information should I provide for custom thrust bearings?
Useful information includes:
-
2D technical drawing
-
3D CAD model
-
Physical sample
-
Inner diameter
-
Outer diameter
-
Overall thickness
-
Shaft dimensions
-
Housing dimensions
-
Axial load information
-
Operating speed
-
Installation arrangement
-
Operating environment
-
Estimated quantity
-
Special requirements
Complete information helps the manufacturer evaluate the project more efficiently.
12. Can thrust ball bearings be customized?
Custom thrust ball bearing requirements can be evaluated according to customer drawings, samples, dimensions, and applications.
Important considerations include axial-load conditions, dimensions, operating speed, installation space, and environmental requirements.
The final bearing configuration should be evaluated according to the complete mechanical system.
13. Can plastic thrust bearings be customized?
HSIAN JI manufactures plastic bearing products and can evaluate customized requirements.
Plastic thrust bearing solutions may be considered for applications where characteristics such as lightweight construction, corrosion resistance, low noise, or specific environmental requirements are important.
Suitability depends on load, dimensions, movement, temperature, moisture, and other operating conditions.
14. What is the difference between a thrust bearing and a radial bearing?
The primary difference is the direction of the load they are designed to support.
Thrust bearings are primarily intended for axial loads acting along the shaft axis.
Radial bearings are primarily intended for loads acting perpendicular to the shaft.
Some bearing configurations may experience combined loading, so actual application requirements should be evaluated before selecting a bearing.
15. Are custom thrust bearings considered non-standard bearings?
They can be.
If a custom thrust bearing has dimensions, structures, or configurations outside commonly available catalogue products, it can also be classified as a non-standard bearing.
"Custom thrust bearing" emphasizes the application and customer-specific requirements, while "non-standard bearing" is a broader category.
16. What applications use custom thrust bearings?
Depending on their design and specifications, custom thrust bearings may be considered for industrial machinery, rotating mechanisms, conveyors, sliding systems, furniture hardware, office equipment, fitness equipment, packaging machinery, transportation products, and other OEM applications.
The correct bearing depends on the actual load, movement, installation, and operating conditions.
17. Can custom thrust bearings replace obsolete or discontinued bearings?
Potentially, depending on technical and manufacturing feasibility.
Customers can provide an existing bearing sample, available drawings, dimensions, application information, axial-load conditions, and required quantities.
The manufacturer can then evaluate whether an appropriate replacement product can be developed.
18. Can I get a prototype before mass production?
Depending on the project, prototype or sample development may be part of the custom bearing process.
Samples can help verify dimensions, installation compatibility, and functional characteristics before volume manufacturing.
For new or non-standard thrust bearings, application testing may also be useful before final production approval.
19. How is the quality of custom thrust bearings controlled?
Quality management may include material inspection, manufacturing process control, dimensional measurement, product testing, final inspection, and ongoing production monitoring.
For customized products, approved drawings, samples, and technical specifications can provide the reference for manufacturing and inspection.
Customers should identify critical dimensions and requirements during project development.
20. Why choose HSIAN JI for custom thrust bearings?
HSIAN JI BEARING CO., LTD. has been involved in bearing development and manufacturing in Taiwan since 1995.
Thrust bearings are part of our bearing product portfolio, along with ball bearings, plastic bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.
We can evaluate customized products according to customer drawings, physical samples, dimensions, application requirements, and production quantities.
If you require custom thrust bearings for an OEM product, special axial-load application, non-standard mechanical design, or replacement component, send HSIAN JI your technical information.
We can evaluate your requirements and discuss a suitable custom thrust bearing solution.
