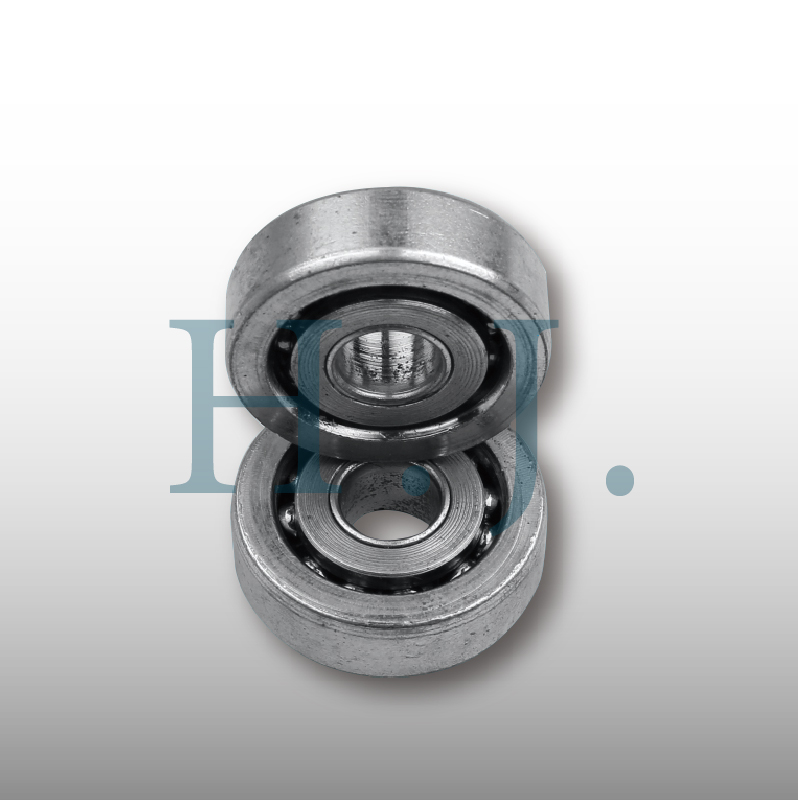

Custom engineered bearings

Custom Engineered Bearings – Application-Specific Bearing Solutions from Taiwan

Standard bearings are suitable for many common mechanical applications, but they cannot satisfy every engineering requirement. Unique shaft dimensions, restricted installation space, special mounting structures, unusual movement, material requirements, or dedicated OEM designs may require a bearing developed specifically for the application. In these situations, custom engineered bearings can provide a practical solution.

Custom engineered bearings combine bearing manufacturing with application-specific engineering. Instead of simply selecting a bearing from a catalogue, the development process considers the customer's mechanical system, dimensions, materials, operating environment, movement, and production requirements.

HSIAN JI BEARING CO., LTD. is a bearing manufacturer based in Taiwan. Established in 1995, HSIAN JI manufactures and develops ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For customers requiring custom engineered bearings, HSIAN JI can evaluate projects based on engineering drawings, CAD models, physical samples, dimensions, materials, application requirements, and production quantities.

What Are Custom Engineered Bearings?

Custom engineered bearings are bearing products designed, modified, or manufactured according to the specific requirements of a customer's application.

They may differ from conventional bearings in:

Inner diameter
Outer diameter
Width
Thickness
External geometry
Flange dimensions
Mounting features
Material
Bearing configuration
Application-specific structures

The objective is to create a bearing solution that works within the customer's mechanical system rather than requiring the customer to redesign the entire system around a standard bearing.

Why Are Custom Engineered Bearings Needed?

Many machines and OEM products have mechanical requirements that cannot be satisfied by standard catalogue bearings.

Common reasons for custom development include:

Non-standard shaft dimensions
Fixed housing dimensions
Limited installation space
Special mounting requirements
Unique mechanical movement
Application-specific geometry
Special material requirements
Existing obsolete components
New OEM product development

When these conditions exist, customized engineering can help determine whether an appropriate bearing solution can be manufactured.

Custom Bearing Engineering Based on the Application

A custom engineered bearing should be evaluated as part of the complete mechanical system.

The manufacturer may need to understand how the bearing interacts with:

Shafts
Housings
Rails
Guides
Rollers
Wheels
Brackets
Frames
Other moving components

Customers should therefore provide more than just bearing dimensions whenever possible.

Application information can help identify potential dimensional, structural, and material requirements before prototype development begins.

Custom Engineered Ball Bearings

Ball bearings are widely used for rotational movement.

A custom engineered ball bearing may be necessary when standard dimensions or configurations cannot meet the application.

Important technical information can include:

Bore diameter
Outside diameter
Width
Shaft dimensions
Housing dimensions
Load
Speed
Mounting requirements
Operating environment

HSIAN JI manufactures ball bearing products and can evaluate customized requirements according to technical and manufacturing feasibility.

Custom Engineered Plastic Bearings

Plastic bearings can provide useful characteristics for certain applications.

Depending on material and design, possible advantages may include:

Lightweight construction
Corrosion resistance
Reduced noise
Moisture resistance
Design flexibility

Engineering plastic materials have different mechanical and environmental characteristics.

Customers should provide information about:

Load
Speed
Temperature
Moisture
Chemical exposure
Movement
Wear conditions
Operating environment

Material and bearing design should be considered together.

Custom Engineered Thrust Bearings

Thrust bearings are primarily used to support axial loads.

A custom engineered thrust bearing may be required when standard products cannot fit the available shaft or installation space.

Customization may involve:

Inner diameter
Outer diameter
Thickness
Washer dimensions
Overall geometry
Material requirements

Customers should also provide axial load, operating speed, installation information, and expected production quantity.

Custom Engineered Slide Bearings

Slide bearings are used to guide linear or sliding movement.

Custom engineering may be necessary when the bearing must integrate with a unique:

Rail
Guide
Housing
Frame
Bracket
Sliding structure

Applications can include machinery, conveyors, furniture, doors, windows, drawers, and specialized mechanical systems.

Assembly drawings can be particularly valuable for these projects because they show the relationship between the bearing and the complete movement system.

Custom Engineered Stamped Bearings

Stamped bearings can provide practical solutions for industrial, mechanical, furniture, hardware, and OEM applications.

Customized engineering requirements may include:

Special stamped structures
Unique dimensions
Mounting features
Application-specific geometry
Dedicated external configurations

Customers can provide technical drawings or physical samples for manufacturing evaluation.

Custom Dimensions for Engineered Bearings

Dimensions are among the most common reasons for custom bearing development.

A customer may require a special:

Inner diameter
Outer diameter
Width
Thickness
Flange diameter
Flange thickness
Mounting dimension
Overall geometry

Changing one dimension can affect other aspects of the bearing.

For this reason, complete drawings are more useful than providing only one required dimension.

Custom Engineered Bearings from Technical Drawings

Engineering drawings provide an effective basis for custom bearing development.

Customers can provide:

2D technical drawings
3D CAD models
Assembly drawings
Material specifications
Critical dimensions
Required tolerances
Mounting requirements

Assembly drawings help the bearing manufacturer understand the relationship between the bearing and surrounding components.

They can also reduce misunderstandings during prototype development and production preparation.

Custom Engineered Bearings from Physical Samples

Sometimes customers have an existing bearing but no original engineering documentation.

This is common with:

Older machinery
Imported equipment
Discontinued products
Existing OEM components
Specialized mechanical systems
Hard-to-find bearings

A physical sample can provide useful dimensional and structural information.

However, customers should also provide application details because the sample alone may not reveal the original material specifications, tolerances, load requirements, or operating conditions.

Material Selection for Custom Engineered Bearings

Material selection should be based on actual application requirements.

Important factors can include:

Mechanical load
Operating speed
Temperature
Moisture
Chemical exposure
Corrosion
Noise
Wear
Indoor or outdoor use

If a customer already has a required material specification, it should be clearly identified on the engineering drawing.

If the material is not predetermined, operating information can help with technical evaluation.

Application-Specific Custom Bearing Design

Some projects begin with an application rather than an existing bearing.

The customer may provide information such as:

Available installation space
Shaft diameter
Housing dimensions
Required movement
Load
Speed
Environment
Product function

The bearing can then be evaluated around these requirements.

This application-driven approach is particularly useful for new OEM and ODM products.

OEM Custom Engineered Bearings

OEM manufacturers often require dedicated bearing components designed around their own products.

Custom engineering can allow product designers to optimize:

Product dimensions
Mechanical layout
Installation
Mounting
Movement
Component integration

OEM customers should provide:

Engineering drawings
Assembly drawings
Material specifications
Critical dimensions
Application information
Initial quantity
Estimated annual demand
Quality requirements
Packaging requirements

This information helps evaluate both development and repeat-production requirements.

ODM Custom Bearing Development

Some customers begin with a product concept, application requirement, or physical sample rather than a finished production drawing.

A development process can include:

Application analysis
Requirement evaluation
Concept development
Product design
Material selection
Prototype manufacturing
Testing and verification
Design adjustment
Production preparation
Trial production
Mass production

This provides a structured path from initial engineering requirements to a manufacturable bearing product.

Prototype Custom Engineered Bearings

Prototype manufacturing is particularly useful for new bearing designs.

A prototype allows customers to verify:

Dimensions
Fit
Installation
Movement
Assembly compatibility
Mechanical interaction
Functional requirements

The prototype can be installed in the customer's actual product or equipment.

If adjustments are necessary, they can be evaluated before regular production.

Testing and Verification

Testing helps determine whether a customized bearing meets the agreed requirements.

Depending on the project, evaluation can include:

Dimensional inspection
Fit verification
Installation testing
Movement evaluation
Assembly testing
Customer-defined functional testing

For application-specific products, customers may also perform tests within the actual operating system.

Trial Production Before Mass Production

After prototype approval, trial production can help verify manufacturing consistency.

Trial production may be used to evaluate:

Manufacturing procedures
Process stability
Dimensional consistency
Inspection methods
Assembly procedures
Production efficiency

Once the product and manufacturing process are approved, regular production can proceed according to agreed specifications.

Quality Control for Custom Engineered Bearings

Quality control is particularly important for customized bearing products because each project may have customer-specific dimensions and requirements.

Quality management can include:

Raw material control
Manufacturing process control
Dimensional inspection
Finished-product inspection
Product testing
Production monitoring
Packaging inspection
Continuous improvement

Approved drawings, specifications, and samples can provide references for recurring production.

Modified and Non-Standard Engineered Bearings

Not every custom engineered bearing requires a completely new design.

In some applications, an existing bearing concept can be modified.

Possible modifications include:

Different bore diameter
Different outside diameter
Special width
Flange changes
Mounting changes
External geometry changes

Other applications may require a more extensively customized non-standard bearing.

The appropriate approach depends on the customer's technical requirements.

Replacement Custom Engineered Bearings

Custom engineering can also be useful for replacement projects.

An existing bearing may become difficult to source because:

The original model is obsolete
The supplier discontinued production
The machine is older
The bearing was originally customized
No standard replacement fits

Customers can provide the original bearing, available drawings, shaft and housing dimensions, load, speed, environment, and quantity for evaluation.

Low Volume Custom Engineered Bearings

Some customized bearing projects require relatively low quantities.

Examples include:

Prototypes
Specialized machinery
Replacement parts
Product development
Initial OEM production

Feasibility depends on product design, material, tooling, manufacturing process, and order quantity.

Customers should provide both initial demand and estimated future requirements.

Mass Production of Custom Engineered Bearings

Custom bearings can also become long-term OEM production components.

After design approval and manufacturing validation, repeat production can be evaluated according to:

Order quantity
Annual demand
Order frequency
Production forecast
Quality requirements
Packaging requirements

Clear technical documentation helps maintain consistency between production batches.

Applications for Custom Engineered Bearings

Depending on bearing type, materials, and specifications, custom engineered bearings can be considered for:

Industrial machinery
Automation equipment
Conveyors
Packaging equipment
Medical equipment
Office equipment
Furniture systems
Sliding doors and windows
Hardware products
Transportation products
Bicycles
Scooters
Fitness equipment
Sporting goods
Specialized OEM products

The correct bearing solution should always be evaluated according to the actual mechanical application.

Why Choose a Custom Engineered Bearing Manufacturer in Taiwan?

Taiwan has a mature manufacturing ecosystem supporting bearings, machinery, metalworking, precision components, plastics, hardware, tooling, and OEM production.

For international customers, working with a Taiwan manufacturer can be useful when projects require:

Engineering communication
Custom dimensions
Product development
Prototype manufacturing
Testing
Quality control
Repeat production

HSIAN JI has been involved in bearing manufacturing and product development in Taiwan since 1995.

HSIAN JI – Custom Engineered Bearings from Taiwan

HSIAN JI manufactures ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For custom engineered bearings, customers can provide:

2D engineering drawings
3D CAD models
Assembly drawings
Physical samples
Required dimensions
Material specifications
Critical tolerances
Load
Speed
Movement requirements
Operating environment
Initial quantity
Estimated annual demand

If a standard catalogue bearing cannot meet your mechanical requirements, HSIAN JI can evaluate your application and discuss an appropriate custom engineered bearing development and manufacturing solution.

Custom Engineered Bearings FAQ

What are custom engineered bearings?

Custom engineered bearings are bearing products developed or modified according to specific customer and application requirements.

They may incorporate custom dimensions, materials, geometry, mounting features, or other application-specific characteristics.

How are custom engineered bearings different from standard bearings?

Standard bearings are manufactured according to common catalogue sizes and configurations.

Custom engineered bearings are developed around the customer's actual mechanical requirements, which can include shaft dimensions, housing dimensions, installation space, movement, materials, and environment.

What is the difference between custom bearings and custom engineered bearings?

The terms overlap.

"Custom bearings" is a broad term describing bearings made according to customer requirements.

"Custom engineered bearings" places greater emphasis on the engineering process used to evaluate the application, bearing structure, dimensions, materials, and manufacturability.

Does HSIAN JI manufacture custom engineered bearings?

HSIAN JI manufactures ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

Customer-specific bearing requirements can be submitted with drawings, samples, specifications, and application information for evaluation.

Can bearing dimensions be customized?

Yes, custom dimensions can be evaluated according to bearing structure and manufacturing feasibility.

These can include:

Inner diameter
Outer diameter
Width
Thickness
Flange dimensions
Mounting dimensions
Overall geometry

Complete drawings are recommended.

Can you manufacture custom engineered bearings from my drawing?

Engineering drawings can provide the technical basis for customized bearing development.

Customers should clearly identify critical dimensions, tolerances, materials, mounting requirements, and other important specifications.

Can you work from a 3D CAD model?

A 3D CAD model can help communicate bearing geometry and its relationship with surrounding components.

Providing a 2D drawing with dimensions and tolerances is also recommended for manufacturing evaluation.

Can you develop a custom bearing from a physical sample?

A physical sample can provide useful dimensional and structural information when drawings are unavailable.

Customers should also provide known information about materials, load, speed, application, and environment.

Can you manufacture custom engineered ball bearings?

HSIAN JI manufactures ball bearing products.

Customized ball-bearing requirements can be evaluated according to dimensions, shaft and housing relationships, load, speed, mounting, environment, and quantity.

Can you manufacture custom engineered plastic bearings?

HSIAN JI manufactures plastic bearings.

Custom plastic-bearing projects should include dimensions, material requirements, load, speed, temperature, moisture, chemicals, movement, and environmental information.

Can you manufacture custom engineered thrust bearings?

HSIAN JI manufactures thrust bearing products.

Customized requirements can be evaluated according to inner diameter, outer diameter, thickness, axial load, speed, material, and installation requirements.

Can you manufacture custom engineered slide bearings?

HSIAN JI manufactures slide bearing products.

Custom slide-bearing projects can be evaluated according to dimensions, rails, guides, mounting structures, movement, load, and complete assembly requirements.

Can you manufacture custom engineered stamped bearings?

HSIAN JI manufactures stamped bearing products.

Customized stamped-bearing requirements can be evaluated according to drawings, samples, materials, geometry, dimensions, and production quantities.

Can you modify an existing standard bearing?

Depending on the project, modifying an existing bearing concept may be possible.

Potential modifications can involve dimensions, flange features, mounting, external geometry, or other application-specific requirements.

Technical feasibility must be evaluated individually.

Can you develop completely non-standard bearings?

HSIAN JI manufactures non-standard and special bearing products.

If modification of an existing product is insufficient, a more extensively customized bearing can be evaluated according to the application.

Can custom engineered bearings solve space limitations?

Potentially.

Customized dimensions or structures may be evaluated when a standard bearing is too large, too wide, or otherwise unsuitable for the available installation space.

Customers should provide complete assembly dimensions.

Can materials be customized?

Material requirements can be evaluated according to bearing type and application.

Customers should provide information about load, temperature, moisture, chemicals, corrosion, wear, and other environmental factors.

Can custom engineered bearings be used in OEM products?

Yes.

OEM products frequently require dedicated bearing components because of unique dimensions, mechanical layouts, mounting requirements, or product functions.

Customers should provide drawings, quantities, annual demand, and quality requirements.

Can HSIAN JI support ODM bearing development?

Projects beginning with an application, concept, sample, or preliminary design can be submitted for evaluation.

Depending on the project, development can include design evaluation, material selection, prototype manufacturing, testing, trial production, and regular manufacturing.

Can I order a prototype custom bearing?

Depending on project feasibility, prototype manufacturing can be used to verify dimensions, fit, installation, movement, and assembly compatibility before production.

Prototype verification is particularly valuable for new designs.

Can the bearing design be changed after prototype testing?

If prototype testing identifies dimensional or functional issues, modifications can be evaluated before final production preparation.

The feasibility of changes depends on product design, materials, tooling, and manufacturing processes.

How are custom engineered bearings tested?

Testing depends on the specific product and application.

It can include dimensional inspection, installation verification, movement evaluation, assembly testing, and customer-defined functional testing.

Customers may also perform application testing within their own equipment.

Can custom engineered bearings be produced in small quantities?

Low-volume requirements can be submitted for evaluation.

These may include prototypes, specialized machinery, replacement components, and initial OEM production.

Feasibility depends on design, materials, tooling, processes, and quantity.

Can custom engineered bearings be mass produced?

After the design, prototype, and manufacturing process have been approved, recurring or higher-volume production can be evaluated.

Customers should provide annual demand and production forecasts when available.

Can custom engineered bearings replace obsolete bearings?

Potentially.

If a standard replacement is unavailable, customers can provide the original bearing, technical drawings if available, shaft dimensions, housing dimensions, load, speed, and application information for evaluation.

Can you reproduce hard-to-find bearings?

A hard-to-find bearing may be a candidate for customized development.

Customers should provide a physical sample or detailed technical information.

Technical and commercial feasibility should then be evaluated.

What tolerances can be specified for custom engineered bearings?

Tolerance requirements depend on the bearing design, dimensions, materials, and manufacturing process.

Customers should clearly identify critical dimensions and required tolerances on the engineering drawing.

Avoid specifying unnecessarily tight tolerances on non-critical features, as this may increase manufacturing complexity and cost.

What information should I provide for a quotation?

For a custom engineered bearings inquiry, provide as much of the following information as possible:

Bearing type
2D engineering drawing
3D CAD model
Assembly drawing
Physical sample
Inner diameter
Outer diameter
Width
Materials
Required tolerances
Load
Speed
Movement
Operating environment
Initial quantity
Estimated annual demand

Complete information helps make technical and commercial evaluation more efficient.

What industries use custom engineered bearings?

Custom engineered bearings can be relevant to:

Industrial machinery
Automation systems
Conveyors
Packaging equipment
Medical equipment
Office equipment
Furniture
Doors and windows
Sliding systems
Hardware
Transportation products
Fitness equipment
Sporting goods
Specialized OEM products

The appropriate bearing depends on the specific application and operating requirements.

What is the difference between custom engineered bearings and application specific bearings?

The two terms are closely related.

Application specific bearings emphasize that the bearing is developed for a particular use or operating condition.

Custom engineered bearings emphasize the engineering and customization process used to create the bearing solution.

A bearing can therefore be both application-specific and custom-engineered.

What is the difference between custom engineered bearings and non-standard bearings?

A non-standard bearing is generally a bearing that differs from conventional catalogue dimensions or configurations.

A custom engineered bearing emphasizes the engineering process used to develop the product.

Many custom engineered bearings ultimately become non-standard products, but the two terms describe slightly different aspects of the project.

Why choose HSIAN JI for custom engineered bearings?

HSIAN JI BEARING CO., LTD. has been involved in bearing development and manufacturing in Taiwan since 1995.

Our product categories include ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For customized projects, customers can provide engineering drawings, CAD models, physical samples, dimensions, materials, application requirements, and production quantities.

If you need custom engineered bearings for an OEM product, new mechanical design, special-size application, replacement component, or unique operating requirement, send HSIAN JI your technical specifications for evaluation.

Bearing Production Factory

Non-Standard Bearings

Special Size Bearings

LOREM IPSUM
