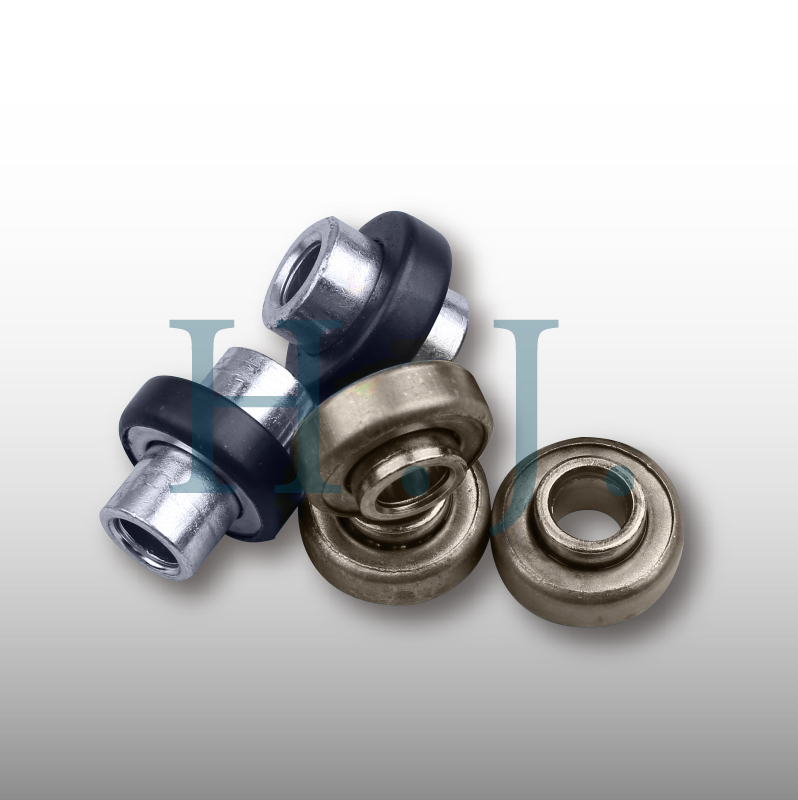

Unique bearing solutions

Unique Bearing Solutions – Custom Bearing Development for Special Applications

Standard bearings can meet many common mechanical requirements, but some applications need something different. Unique dimensions, special mounting structures, unusual movement, restricted installation space, application-specific materials, or dedicated OEM designs may require unique bearing solutions developed around the actual product.

A unique bearing solution does not necessarily mean creating an entirely new bearing from the beginning. Depending on the application, the most suitable solution may involve modifying an existing bearing concept, developing a special-size product, selecting a different material, creating a non-standard bearing, or designing a custom assembly around the customer's mechanical requirements.

HSIAN JI BEARING CO., LTD. is a bearing manufacturer based in Taiwan. Established in 1995, we manufacture and develop ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For customers requiring unique bearing solutions, HSIAN JI can evaluate projects according to engineering drawings, physical samples, dimensions, materials, load, speed, operating environment, assembly requirements, and production quantities.

What Are Unique Bearing Solutions?

Unique bearing solutions are bearing products or configurations developed for mechanical applications that cannot be fully satisfied by conventional catalogue bearings.

The solution may involve:

• Custom dimensions

• Special mounting features

• Modified standard bearings

• Non-standard bearing structures

• Different materials

• Custom external geometry

• Special flange dimensions

• Application-specific configurations

• Bearing assemblies

The objective is to solve the customer's mechanical requirement rather than simply provide the closest available catalogue bearing.

Why Are Unique Bearing Solutions Needed?

Machines, equipment, and OEM products can have very different mechanical requirements.

A standard bearing may be unsuitable because:

• The shaft diameter is non-standard

• Housing dimensions cannot be changed

• Installation space is limited

• A special mounting feature is required

• The application has unusual movement

• Material requirements are different

• The product needs reduced noise

• The bearing must fit a unique assembly

• No catalogue model provides the required combination of features

In these situations, a custom or engineered bearing solution can be evaluated.

Bearing Solutions Based on the Complete Application

The bearing should not be evaluated in isolation.

A bearing may interact with:

• Shafts

• Housings

• Rails

• Guides

• Rollers

• Wheels

• Brackets

• Frames

• Sliding structures

• Other mechanical components

Understanding the complete assembly helps identify whether the best solution is a special bearing, modified bearing, plastic bearing, slide bearing, custom-size product, or another configuration.

Unique Ball Bearing Solutions

Ball bearings are widely used in rotational applications.

A unique ball bearing solution may be required when standard models do not fit the application.

Customization can involve:

• Bore diameter

• Outside diameter

• Width

• External structure

• Mounting arrangement

• Integration with surrounding components

Customers should provide shaft dimensions, housing dimensions, load, speed, environment, and required quantity.

HSIAN JI manufactures ball bearing products and can evaluate customized requirements.

Unique Plastic Bearing Solutions

Plastic bearings can provide useful options for applications requiring characteristics such as lightweight construction, corrosion resistance, reduced noise, moisture resistance, or design flexibility.

A unique plastic bearing solution can involve both material and dimensional customization.

Customers should provide:

• Load

• Speed

• Temperature

• Moisture

• Chemicals

• Movement

• Wear conditions

• Required dimensions

The most appropriate plastic bearing solution depends on the complete operating environment.

Unique Thrust Bearing Solutions

Thrust bearings are primarily used to support axial loads.

A unique thrust bearing solution may be needed when standard dimensions or configurations cannot fit the mechanical system.

Customization may involve:

• Inner diameter

• Outer diameter

• Thickness

• Washer dimensions

• Mounting structure

• Material

Customers should provide axial-load information, speed, dimensions, installation space, and quantity.

Unique Slide Bearing Solutions

Slide bearings support and guide sliding or linear movement.

A customized slide-bearing solution may be necessary when the bearing must integrate with a unique:

• Rail

• Guide

• Bracket

• Frame

• Housing

• Sliding mechanism

Applications can include machinery, conveyors, furniture, doors, windows, drawers, and other mechanical systems.

Assembly drawings can be particularly helpful because they show how the bearing interacts with the complete movement system.

Unique Stamped Bearing Solutions

Stamped bearings can provide practical solutions for machinery, hardware, furniture, equipment, and other applications.

Custom requirements can involve:

• Special stamped geometry

• Unique dimensions

• Mounting features

• Custom housing structure

• Application-specific configurations

Customers can submit technical drawings, samples, materials, and quantities for evaluation.

Custom Size Bearing Solutions

Special dimensions are a common reason customers need unique bearing solutions.

Customization may involve:

• Inner diameter

• Outer diameter

• Width

• Thickness

• Flange diameter

• Mounting dimensions

• Overall geometry

For example, an existing machine may have a fixed shaft and housing that cannot be modified.

If no standard bearing matches both dimensions, a custom-size solution can be evaluated.

Modified Standard Bearing Solutions

Not every custom project requires a completely new design.

If a standard bearing is close to the required specification, selected modifications may be enough.

Possible modifications can include:

• Bore size

• Outside diameter

• Width

• Flange configuration

• Mounting features

• External geometry

This approach can provide a practical middle ground between standard catalogue bearings and completely non-standard products.

Non-Standard Bearing Solutions

Some applications require bearing structures that differ significantly from standard products.

Non-standard solutions may be appropriate when:

• Several dimensions are unusual

• Mounting features are unique

• The bearing integrates with a special assembly

• A proprietary OEM component must be developed

• A standard concept cannot meet the application

HSIAN JI manufactures non-standard bearing products and can evaluate application-specific requirements.

Unique Bearing Solutions from Engineering Drawings

Engineering drawings provide one of the best starting points for custom development.

Customers can provide:

• 2D technical drawings

• 3D CAD models

• Assembly drawings

• Material specifications

• Critical dimensions

• Required tolerances

• Mounting information

Assembly drawings help the manufacturer understand how the bearing interacts with surrounding components.

This information can improve technical evaluation and reduce uncertainty during development.

Unique Bearing Solutions from Physical Samples

Sometimes customers have an existing product but no original engineering drawing.

A physical sample can provide useful information about:

• Dimensions

• Geometry

• Mounting

• Construction

• Component relationships

Sample-based development can be useful for:

• Existing OEM products

• Older machinery

• Specialized equipment

• Discontinued components

• Unique assemblies

Customers should also provide application information because a physical sample may not reveal all original technical specifications.

Material Selection for Unique Bearing Solutions

Material choice can influence:

• Weight

• Corrosion resistance

• Noise

• Wear

• Temperature behavior

• Moisture resistance

• Chemical resistance

• Mechanical performance

For customized applications, customers should provide complete operating conditions.

If a specific material is already required, it should be clearly identified on the drawing.

If not, the application information can help guide technical evaluation.

Application-Specific Bearing Solutions

Some projects begin with the application rather than with a bearing model.

The customer may only know:

• Available space

• Shaft dimensions

• Required movement

• Load

• Speed

• Environment

• Product function

From this information, the manufacturer can evaluate which bearing configuration may be suitable.

This is particularly useful for OEM and ODM projects.

Unique Bearing Solutions for OEM Products

OEM manufacturers often require dedicated bearing components designed around their own products.

A unique bearing solution may allow engineers to optimize:

• Product size

• Mechanical layout

• Assembly

• Mounting

• Movement

• Component integration

OEM customers should provide:

• Engineering drawings

• Assembly drawings

• Materials

• Critical dimensions

• Initial quantity

• Annual demand

• Quality requirements

The goal is to create a solution that can be manufactured consistently for repeat production.

ODM Bearing Solution Development

Some customers begin with a product idea, application requirement, or sample rather than a completed design.

A development process may include:

1. Requirement review

2. Application analysis

3. Concept development

4. Bearing design

5. Material selection

6. Prototype manufacturing

7. Testing and verification

8. Design adjustment

9. Production preparation

10. Trial production

11. Mass production

This allows the bearing solution to evolve together with the product design.

Prototype Unique Bearing Solutions

Prototype manufacturing is useful when a new bearing configuration needs to be verified.

A prototype can help evaluate:

• Dimensions

• Fit

• Installation

• Movement

• Assembly compatibility

• Mechanical interaction

• Functional requirements

The customer can test the bearing inside the actual equipment.

If changes are necessary, they can be evaluated before regular production.

Testing and Verification

Custom bearing solutions should be evaluated according to the intended application.

Testing may include:

• Dimensional inspection

• Installation verification

• Fit testing

• Movement evaluation

• Assembly testing

• Customer-defined functional testing

The exact testing process depends on bearing type and project requirements.

Trial Production and Production Validation

After prototype approval, trial production can help determine whether the design can be manufactured consistently.

Trial production can evaluate:

• Manufacturing procedures

• Process stability

• Dimensional consistency

• Inspection methods

• Assembly

• Production efficiency

After manufacturing requirements are confirmed, regular production can proceed.

Quality Control for Unique Bearing Solutions

Quality control is particularly important for custom bearing projects.

Quality management can include:

• Raw material control

• Manufacturing process control

• Dimensional inspection

• Finished-product inspection

• Product testing

• Production monitoring

• Packaging inspection

• Continuous improvement

Approved drawings, specifications, and samples can provide production references.

Low Volume Unique Bearing Solutions

Some unique bearing projects require relatively small quantities.

These can include:

• Prototypes

• Specialized machinery

• Replacement components

• New product development

• Initial OEM production

Feasibility depends on design, material, tooling, manufacturing process, and quantity.

Customers should provide both initial quantities and possible future demand.

Mass Production of Unique Bearing Solutions

Custom solutions can also become recurring OEM components.

After development and production approval, mass or repeat production can be evaluated according to:

• Order quantities

• Annual demand

• Production frequency

• Forecasts

• Packaging requirements

• Quality requirements

This allows a unique design to become a stable production component.

Replacement Unique Bearing Solutions

Unique bearing development can also support replacement requirements.

An existing bearing may be:

• Discontinued

• Obsolete

• Difficult to source

• Proprietary

• Unusual in size

• Originally custom-made

Instead of redesigning the machine, a replacement bearing solution can be evaluated using the original component and application information.

Applications for Unique Bearing Solutions

Depending on bearing type and specifications, unique bearing solutions can be considered for:

• Industrial machinery

• Automation systems

• Conveyors

• Packaging equipment

• Medical equipment

• Office equipment

• Furniture

• Doors and windows

• Sliding systems

• Hardware

• Transportation products

• Bicycles

• Scooters

• Fitness equipment

• Sporting goods

• Specialized OEM products

The correct solution depends on the mechanical and environmental requirements of each application.

Why Choose Unique Bearing Solutions from Taiwan?

Taiwan has a mature manufacturing ecosystem supporting bearings, machinery, metalworking, precision components, plastics, hardware, tooling, and OEM production.

For international buyers, working with a Taiwan manufacturer can provide a practical option when projects require:

• Technical communication

• Customized dimensions

• Product development

• Prototyping

• Testing

• Quality control

• Repeat production

HSIAN JI has been involved in bearing development and manufacturing in Taiwan since 1995.

HSIAN JI – Unique Bearing Solutions from Taiwan

HSIAN JI manufactures ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For unique bearing solutions, customers can provide:

• Engineering drawings

• 3D CAD models

• Assembly drawings

• Physical samples

• Required dimensions

• Material specifications

• Critical tolerances

• Load

• Speed

• Movement

• Operating environment

• Initial quantity

• Estimated annual demand

If standard catalogue products cannot meet your requirements, HSIAN JI can evaluate your application and discuss an appropriate custom, modified, special, or non-standard bearing solution.

---

Unique Bearing Solutions FAQ

What are unique bearing solutions?

Unique bearing solutions are customized, modified, special, or non-standard bearing products developed to meet specific mechanical requirements that standard catalogue bearings cannot fully satisfy.

Are unique bearing solutions always custom bearings?

Not necessarily.

Some applications may require only a modified standard bearing.

Others may require custom dimensions, different materials, special mounting features, or a completely non-standard bearing.

The solution depends on the application.

Does HSIAN JI provide unique bearing solutions?

HSIAN JI manufactures multiple bearing categories, including ball, plastic, thrust, stamped, slide, special, and non-standard bearings.

Customer-specific bearing requirements can be submitted for evaluation.

What types of bearing problems can a unique solution address?

Unique bearing solutions can be useful for:

• Unusual dimensions

• Restricted installation space

• Non-standard shafts

• Fixed housings

• Special mounting

• Unusual movement

• Special materials

• OEM-specific designs

• Hard-to-find replacement bearings

Can bearing dimensions be customized?

Yes, custom dimensions can be evaluated according to product structure and manufacturing feasibility.

These may include inner diameter, outer diameter, width, flange dimensions, mounting dimensions, and overall geometry.

Can you modify a standard bearing?

Depending on the project, a standard bearing concept can potentially be modified.

Changes may involve dimensions, flange features, mounting, material, or external geometry.

Can you manufacture completely non-standard bearings?

HSIAN JI manufactures non-standard bearing products.

Projects that differ substantially from catalogue designs can be evaluated based on drawings, samples, application requirements, and quantities.

Can you manufacture unique ball bearings?

HSIAN JI manufactures ball bearing products.

Custom ball bearing solutions can be evaluated according to dimensions, shaft and housing requirements, load, speed, mounting, and application.

Can you manufacture unique plastic bearings?

HSIAN JI manufactures plastic bearings.

Custom plastic-bearing projects can be evaluated according to dimensions, material, load, temperature, moisture, chemicals, speed, movement, and environment.

Can you manufacture unique thrust bearings?

HSIAN JI manufactures thrust bearings.

Custom thrust-bearing solutions can be evaluated according to inner diameter, outer diameter, thickness, axial load, speed, installation, and materials.

Can you manufacture unique slide bearings?

HSIAN JI manufactures slide bearings.

Custom slide-bearing solutions can be evaluated according to rails, guides, mounting structures, dimensions, movement, load, and complete assembly requirements.

Can you manufacture unique stamped bearings?

Stamped bearings are part of HSIAN JI's product range.

Custom stamped-bearing requirements can be evaluated according to drawings, physical samples, geometry, dimensions, materials, and quantities.

Can you develop a bearing from an engineering drawing?

Yes. Engineering drawings can provide the basis for customized bearing evaluation.

Customers should clearly identify dimensions, tolerances, materials, geometry, mounting features, and application requirements.

Can you develop a bearing from a physical sample?

A physical sample can provide useful dimensional and structural information.

Customers should also provide known operating conditions, load, speed, materials, and application information whenever possible.

Can you help if I do not know which bearing type I need?

Customers can provide the mechanical application, movement, dimensions, load, speed, environment, and assembly information.

From this information, potential bearing approaches can be evaluated.

Can unique bearing solutions solve space limitations?

Potentially.

Custom dimensions, modified structures, or non-standard configurations may be evaluated when standard bearings are too large or otherwise unsuitable.

Can you design bearings around special shafts or housings?

Customer-specific shaft and housing dimensions can be included in technical evaluation.

Complete assembly drawings are recommended.

Can materials be customized?

Material requirements can be evaluated according to bearing type and application.

Customers should provide information about temperature, moisture, chemicals, load, wear, and corrosion concerns.

Can unique bearing solutions be used in OEM products?

Yes.

OEM products frequently require dedicated bearing components because of unique product dimensions or mechanical layouts.

Customers should provide drawings, production quantities, annual demand, and quality requirements.

Can HSIAN JI support ODM projects?

Projects beginning with an application, concept, drawing, or sample can be submitted for evaluation.

Development may involve design assessment, material selection, prototypes, testing, trial production, and regular manufacturing.

Can I order a prototype?

Depending on the project, prototype manufacturing can help verify dimensions, fit, installation, movement, and assembly compatibility before regular production.

Can the design be modified after prototype testing?

Yes, if testing identifies dimensional or functional issues, modifications can be evaluated before production preparation.

Can unique bearing solutions be produced in small quantities?

Low-volume projects can be submitted for evaluation.

These may include prototypes, replacement bearings, specialized machinery, or initial OEM production.

Feasibility depends on the design and manufacturing process.

Can unique bearing solutions be mass produced?

After the design and production process are approved, recurring or higher-volume production can be evaluated.

Annual demand and forecasts can help with production planning.

Can unique bearing solutions replace obsolete bearings?

Potentially.

If no standard replacement fits, the original bearing, drawings, shaft and housing dimensions, application, load, speed, and quantity can be evaluated.

Can you replace hard-to-find bearings?

A difficult-to-source bearing can be evaluated as a custom, modified, special, or non-standard replacement project.

Customers should provide the original component or complete technical information.

What information should I provide for a quotation?

For a unique bearing solutions inquiry, provide as much of the following as possible:

• Bearing type, if known

• 2D engineering drawing

• 3D CAD model

• Assembly drawing

• Physical sample

• Inner diameter

• Outer diameter

• Width

• Materials

• Required tolerances

• Load

• Speed

• Movement

• Operating environment

• Initial quantity

• Estimated annual demand

Complete information helps technical evaluation.

What industries use unique bearing solutions?

Unique bearing solutions can be relevant to machinery, automation systems, conveyors, packaging equipment, medical equipment, office equipment, furniture, sliding systems, hardware, transportation products, fitness equipment, sporting goods, and specialized OEM products.

What is the difference between unique bearing solutions and engineered bearings?

Engineered bearings emphasize the engineering process used to develop a solution.

Unique bearing solutions is a broader phrase that can include engineered, modified, special, custom, and non-standard bearing approaches.

What is the difference between unique bearing solutions and application-specific bearings?

Application-specific bearings are developed around one particular application.

Unique bearing solutions can include application-specific products but can also describe unusual replacement bearings, special sizes, modified bearings, or customized assemblies.

Why choose HSIAN JI for unique bearing solutions?

HSIAN JI BEARING CO., LTD. has been involved in bearing manufacturing and development in Taiwan since 1995.

Our product categories include ball bearings, plastic bearings, thrust bearings, stamped bearings, slide bearings, special bearings, and non-standard bearings.

For customized projects, customers can provide engineering drawings, CAD models, physical samples, dimensions, materials, application requirements, and production quantities.

If a standard bearing cannot meet your mechanical requirements, HSIAN JI can evaluate an appropriate unique bearing solution for your OEM product, machine, replacement project, or specialized application.
